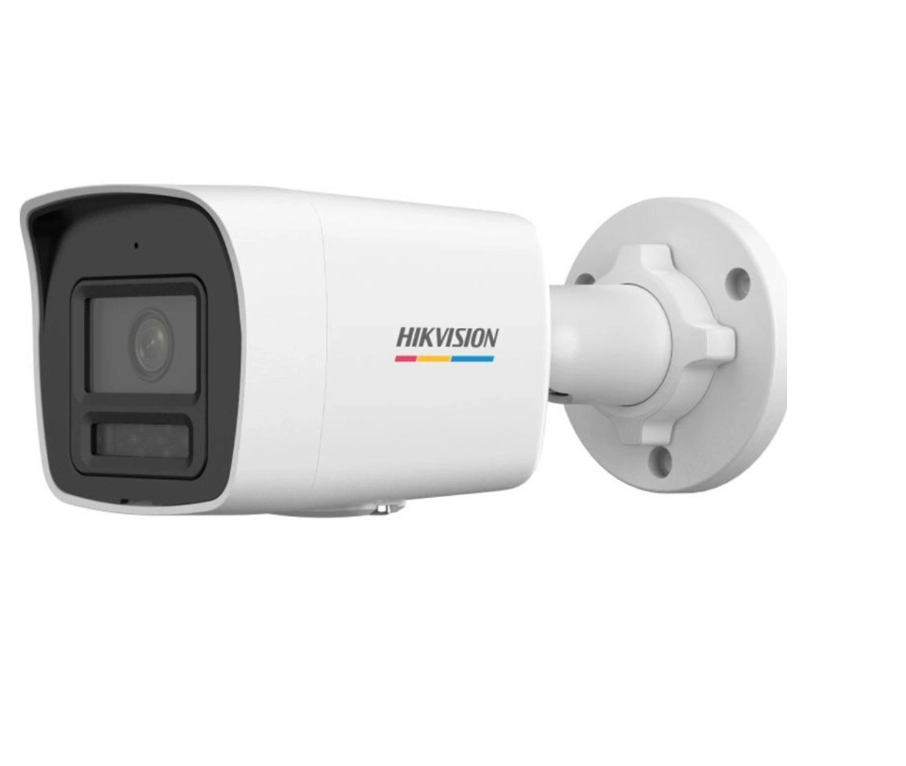

- Hikvision DS-2CD1047G2H-LIUF Bullet 4 MP 2.8mm Lens Gece Görüşlü IP Güvenlik Kamerası
Ürün Açıklaması
| Özellik | Açıklama |
|---|---|
| Kamera | |
| Görüntü Sensörü | 1/3" Progressive Scan CMOS |
| Maks. Çözünürlük | 2560 × 1440 |
| Min. Aydınlatma | Renk: 0.001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR |
| Deklanşör Süresi | 1/3 s to 1/100,000 s |
| Gündüz & Gece | IR cut filter |
| Açı Ayarı | Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° |
| Lens | |
| Lens Tipi | Fixed focal lens, 2.8 and 4 mm optional |
| Odak Uzunluğu & FOV | 2.8 mm, horizontal FOV 115°, vertical FOV 60°, diagonal FOV 143° |
| 4 mm, horizontal FOV 94°, vertical FOV 50°, diagonal FOV 110° | |
| Lens Montajı | M12 |
| Iris Tipi | Fixed |
| Diyafram | F1.0 |
| DORI | |
| DORI | 2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m |
| 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m | |
| Aydınlatıcı | |
| Ek Işık Tipi | IR,White Light |
| Ek Işık Menzili | Up to 30 m |
| Akıllı Ek Işık | Yes |
| IR Dalga Boyu | 850 nm |
| Video | |
| Ana Akış | 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) |
| 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720) | |
| Alt Akış | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) |
| 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) | |
| Video Sıkıştırma | Ana akış: H.265+/H.265/H.264+/H.264, Alt akış: H.265/H.264/MJPEG |
| Video Bit Hızı | 32 Kbps to 16 Mbps |
| H.264 Tipi | Baseline Profile,Main Profile,High Profile |
| H.265 Tipi | Main Profile |
| Bit Hızı Kontrolü | CBR,VBR |
| Ölçeklenebilir Video Kodlama (SVC) | H.264 and H.265 encoding |
| İlgi Alanı (ROI) | 1 fixed region for main stream |
| Ses | |
| Ses Tipi | Mono sound |
| Ses Sıkıştırma | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Ses Bit Hızı | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Ses Örnekleme Hızı | 8 kHz/16 kHz |
| Ortam Gürültüsü Filtreleme | Yes |
| Ağ | |
| Protokoller | IPv4,IPv6,TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP |
| Eşzamanlı Canlı Görüntüleme | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK |
| Kullanıcı/Host | Up to 32 users, 3 user levels: administrator, operator, and user |
| Güvenlik | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| İstemci | iVMS-4200,Hik-Connect |
| Web Tarayıcısı | Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Görüntü | |
| Görüntü Ayarları | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Gündüz/Gece Anahtarı | Day,Night,Auto,Schedule |
| Geniş Dinamik Aralık (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Görüntü Geliştirme | BLC,HLC,3D DNR |
| Gizlilik Maskesi | 4 programmable polygon privacy masks |
| Arayüz | |
| Ethernet Arayüzü | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Dahili Depolama | -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Dahili Mikrofon | Yes,1 built-in microphone |
| Sıfırlama Tuşu | -F: Yes |
| Olay | |
| Temel Olay | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
| Bağlantı | Upload to memory card (-F model supports), trigger recording (-F model supports), upload to FTP,notify surveillance center,send email,trigger capture |
| Genel | |
| Güç | 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W |
| Malzeme | Front cover: metal, body: plastic, bracket: plastic |
| Boyut | 69.8 mm × 67.9 mm × 172.9 mm (2.7" × 2.7" × 6.8") |
| Paket Boyutu | 150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55") |
| Ağırlık | Approx. 550 g (1.2 lb.) |
| Paketle Birlikte Ağırlık | Approx. 800 g (1.8 lb.) |
| Depolama Koşulları | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Başlangıç ve İşletme Koşulları | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Dil | English, Ukrainian |
| Genel Fonksiyon | Heartbeat,anti-banding,mirror,password protection,password reset via email |
| Onay | |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 |
| Güvenlik | CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
| Çevre | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
